Zero Hinge Hydraulic Bifold Glass Doors
Zero Hinge Collection: Architectural Hydraulic Bifold Glass Doors
In modern architecture, few features make as bold a statement as a beautifully engineered glass door system. Premier’s Zero Hinge Collection redefines how we connect indoor and outdoor spaces.
Designed for high-end residential and retail environments, these hydraulic bifold glass doors offer a bold architectural statement paired with exceptional functionality. The result is a door system that performs effortlessly in demanding environments while complementing even the most ambitious architectural visions.
Elevate Your Space — Literally
The Zero Hinge Collection features a distinctive vertical lift mechanism that raises the two glass door panels upward, creating a seamless transition between indoors and outdoors. Whether used for a patio, retail storefront, garage, or campus installation, these doors bring a unique design edge and an open-air experience like no other.
Available in sizes up to 30 feet wide and 24 feet tall, they make a dramatic impression while maximizing accessibility and light.
Precision Craftsmanship, Premium Materials
Every door in the Zero Hinge Collection is hand-fabricated from steel and tailored to fit your design vision. The combination of exterior fixed steel glass stops and interior aluminum stops, both 45-degree angle cut and welded, ensures a clean, elegant finish ideal for custom applications.
Choose from a wide range of insulated glass panels, available in different thicknesses and finishes, to blend well with your architectural intent.
Engineered for Performance
The Zero Hinge door system features solid steel machined pivot blocks located on each side of the frame for structural integrity and smooth operation. Our in-house team hand-selects specialized hydraulic components to ensure optimal performance and lifting speed tailored to your door’s size and application.
To complement the door’s industrial elegance, we’ve chosen Grade 8 black oxide hardware, matching the detail and durability of the fabrication.
The Zero Hinge door system features solid steel machined pivot blocks located on each side of the frame for structural integrity and smooth operation. Our in-house team hand-selects specialized hydraulic components to ensure optimal performance and lifting speed tailored to your door’s size and application.
To complement the door’s industrial elegance, we’ve chosen Grade 8 black oxide hardware, matching the detail and durability of the fabrication.
Key Features and Benefits of Our Automated Hydraulic Door Systems
Premier Door Co.’s Zero Hinge bifold system is known for combining sleek design with mechanical precision. Here’s what sets it apart from conventional hydraulic door options.
Proprietary Pivot Design
Instead of bulky exterior hinges, the Zero Hinge system uses hidden top-side pivot points. This keeps sightlines clean while adding a layer of security, as there are no exposed hinge mechanisms to compromise. The pivot blocks are engineered to evenly distribute the door’s weight, reducing stress on the frame and extending service life.

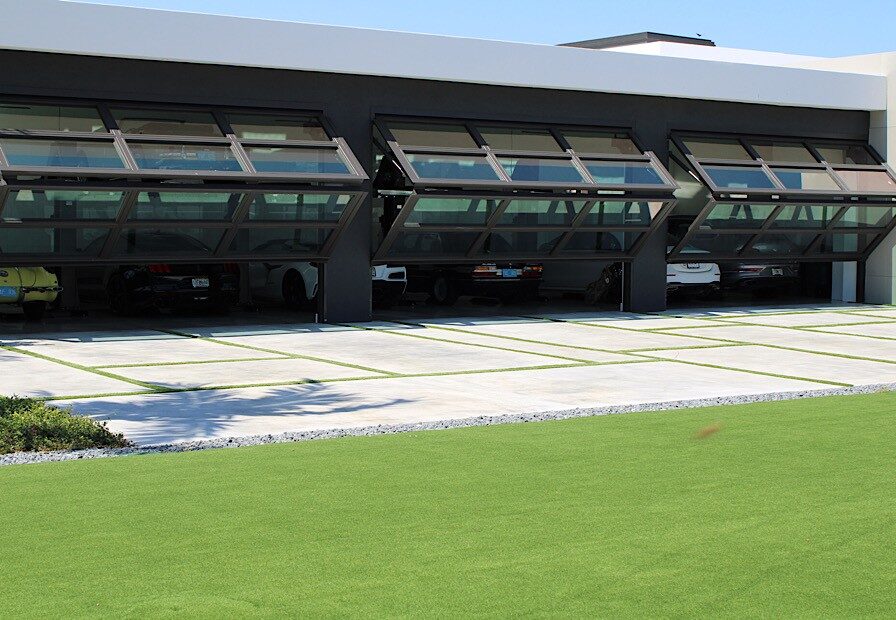

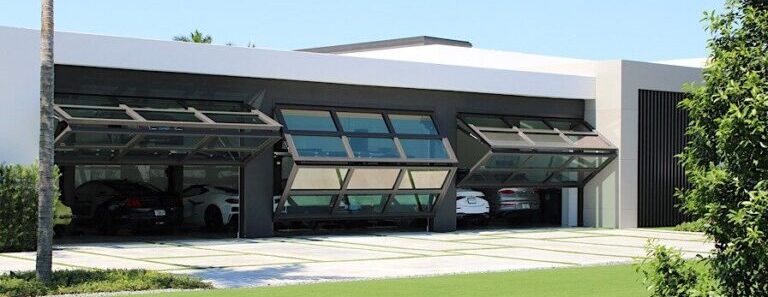

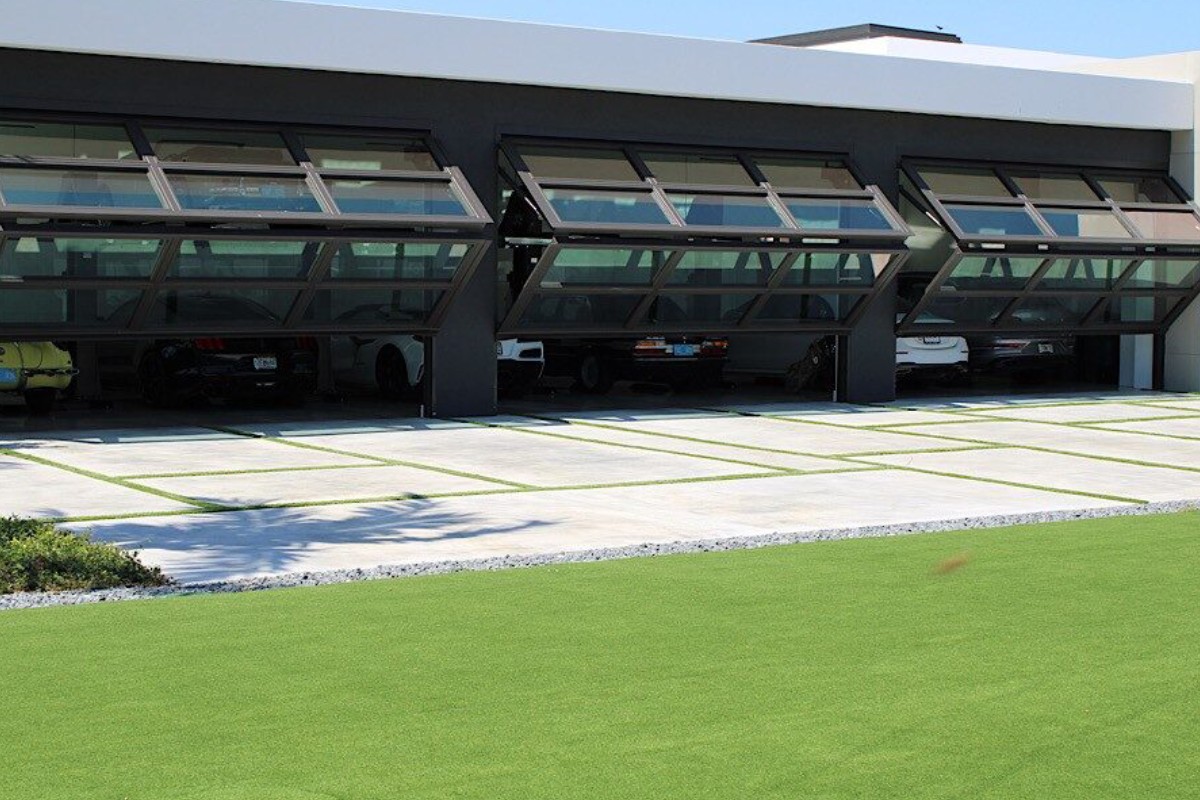

Vertical Lift Operation
The upward-folding design qualifies these as true vertical lift glass doors, making them ideal for areas with minimal room. Unlike outward-swinging doors, the vertical motion preserves valuable patio, driveway or sidewalk space. This mode of operation is particularly useful in urban locations or properties where every inch of exterior space matters.
Customizable Dimensions
From compact service windows to monumental installations up to 30 feet wide and 24 feet tall, every Zero Hinge door is tailored to fit. This flexibility ensures compatibility with unusual openings while allowing architects and builders to achieve their exact design intent.
The Smart Door® Advanced Control System
The standard hydraulic bifold operator functions in constant-contact mode for direct control. For advanced functionality, you can upgrade to Premier Door Co.’s Smart Door® system, offering:
- Automated, semi-automated and manual control modes
- Variable opening and closing speeds
- Hydraulic system monitoring
- Bottom edge safety sensors
With Smart Door®, operation becomes even more intuitive. Intelligent modes allow you to set preferred speeds for operational needs. Integration with home automation systems makes it possible to open or close the door remotely, or even coordinate with lighting and climate controls. Multi-door control capability is available, giving one operator the ability to manage several installations simultaneously.
Industry-Specific Solutions
Our automated hydraulic door systems can be used in several applications.
Luxury Residential
Residential hydraulic glass doors seamlessly turn garages, pool houses and entertainment areas into extensions of the home. Their upward-folding motion makes them perfect for properties with shorter driveways or tight exterior spaces. For homeowners who value architectural consistency, every detail is selected to align with the home’s style — from glass type to cladding.
Retail and Commercial
For retail storefronts, restaurants and hospitality spaces, these doors create an open, welcoming environment without disrupting customer areas. Businesses can transform indoor seating areas into open-air spaces in seconds and benefit from the quick switch between open and closed modes when operating the door.
Customization Options
Glass selection plays a central role in how your door and property in general will look after installation. Choose from clear, tinted, frosted or patterned glass to balance visibility and privacy. In regions where weather resistance is critical, impact glass bifold doors offer the durability and safety required for coastal or storm-prone environments.
Frames can also be finished in a variety of colors or clad in premium materials such as aluminum, Corten steel or wood to coordinate with surrounding property designs.
Why Choose Zero Hinge Technology?
Here’s how our Zero Hinge design compares to others on the market.
Compared to Traditional Bifold Doors
The Zero Hinge bifold door design eliminates visible hinges and tracks, offering a cleaner, more modern appearance. Its vertical folding mechanism prevents the door from taking up too much space outside while maintaining a full-width opening.
This design is ideal for high-end places where both style and function are essential. The cleaner lines and hidden mechanics also mean less routine maintenance compared to exposed hinge systems.
Compared to Standard Hydraulic Doors
The dual-panel folding motion provides greater efficiency in tight spaces than a single-panel hydraulic door. With Smart Door® integration and an expanded range of customization options, the Zero Hinge system is built to outperform in both design flexibility and user experience.
Where You’ll See Zero Hinge Glass Doors
Premier’s hydraulic bifold glass doors are making a statement in:
🏡 Luxury patios & outdoor living areas
🏬 Retail storefronts
🚗 Modern garages
🏢 Office spaces
🍽️ Service windows & hospitality venues
🎓 College campuses & student centers
Get Your New Automated Hydraulic Door System Today
When you partner with Premier Door Co., you’re choosing a design team that understands how to blend engineering precision with architectural vision. Contact our team today to receive a tailored quote, discuss your goals and explore customization possibilities.
We also offer partnership opportunities for contractors and installers who take pride in their craft and want to work with high-end and custom-engineered door systems.
